Free To Air Satellite Receiver |
| |
Free To Air Satellite Receiver |

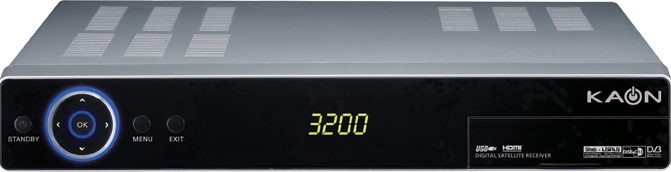

| KSF-A3200HR |
FEATURES & SPECIFICATIONS |
||||
| Kaon Free To Air Satellite Receiver | Tuner & Channel | System Resources | |||
| HDMI Output ( 480p, 576i, 576p) | |||||
| USB PVR Ready | Input Connector | F-type, IEC 169-24, Female | Main Processor | ||
| EPG booking and Timer function | Signal Level | -25 to -65 dBm | |||
| Easy installation with Automatic Freeview install | LNB Power & Polarization | Vertical: +13.5V / Horizontal :
+18V / Current: Max. 500mA. / Overload Protection |
|||
| Follows Freeview NZ channel numbers | Frequency | 22±1KHz | |||
| Will automatically tune in new channels | DiSEqC Control | Amplitude: 0.6±0.2V / Version 1.2, USALS Available | Power Supply | ||
| Teletext | Demodulation | QPSK | |||
| 7 day EPG via DVB-EIT data | Input Symbol Rate | 2-45 Ms/s Convolution Code Rate | |||
| MPEG TS A/V Decoding | |||||
|
|||||
| Transport Stream | MPEG-2 ISO/IEC 13818 | Physical Specification | |||
| Profile Level | MPEG-2 MP@ML | ||||
| Input Rate | Max. 81 Mbit/s | ||||
| Aspect Ratio | 4:3, 16:9, Letter Box | ||||
| Video Resolution | 720 * 576(PAL) / 720 * 480(NTSC) | ||||
| Audio Decoding | MPEG/Musicam Layer I & II | ||||
| Audio Mode | Mono / Left / Right / Stereo | ||||
| Sampling Rate | 32, 44.1 and 48KHz | Added Functions (Optional) | |||
| A/V & Data In/Out | |||||
| Video | RCA/Cinch, Video Output (CVBS) | ||||
 |
Audio L/R | RCA/Cinch Volume & Mute Control / | |||
| (Resolution: 20 bits DAC, Max 2Vrms),0/12V Support | Warranty | 12 months | |||
| SCART | 1-SCART A/V | ||||
| HDMI | 1-HDMI ( 480p, 576i, 576p) | ||||
| USB 2.0 | HOST, 1 port in front | ||||
| Distributed in New Zealand by: | |||
 |
